AC Unit Not Turning On: Expert Troubleshooting Guide

An AC unit not turning on in the middle of a heat wave rarely means catastrophic failure. Most common AC problems trace back to a short list of causes – and a systematic check resolves many of them without a service call.

Why AC Won’t Turn On: Common Causes

An air conditioner – split-system, package unit, or window type – runs on a clear dependency chain. It requires a stable 115–230V power supply, a thermostat that correctly controls it, and healthy internal components: compressor, condenser, and evaporator all working in sync. The HVAC system connects directly to the electrical panel. One broken link, and everything stops.

AC troubleshooting experience shows that the same common AC problems are behind the vast majority of no-start calls. These reasons cover close to 95% of cases:

• Thermostat set incorrectly or batteries dead – ~35%; the most common and easiest to fix
• Tripped circuit breaker or blown fuse – ~25%; cuts power supply to the entire unit
• Clogged air filter – ~15%; restricted airflow triggers a protective safety shutdown
• Failed capacitor – ~12%; the compressor and fan motor can’t start without it
• Blocked condensate drain – ~8%; float switch activates and cuts the system off
• Contactor or compressor failure – ~5%; requires professional HVAC service

Thermostat Issues: Often the First Culprit

On one service call, the homeowner described a fully unresponsive air conditioning system. The fix took two minutes: the digital thermostat had been switched from “Cool” to “Fan Only.”

The thermostat is a 24V control device that monitors room temperature and sends signals to the contactor in the outdoor unit. Dead batteries, a wrong mode, or a misconfigured program all cut this connection – and the air conditioner won’t turn on regardless of what else is working.

Thermostat troubleshooting – in order of likelihood:

1. Set mode to COOL – not “Heat” or “Fan Only”
2. Set target temperature at least 3–5°F below current room temperature
3. Replace batteries – digital thermostats are battery-dependent and give no warning before failing
4. Check that no programmed schedule is blocking the cooling cycle
5. If the screen is blank, inspect the 24V wired or wireless connection at the base

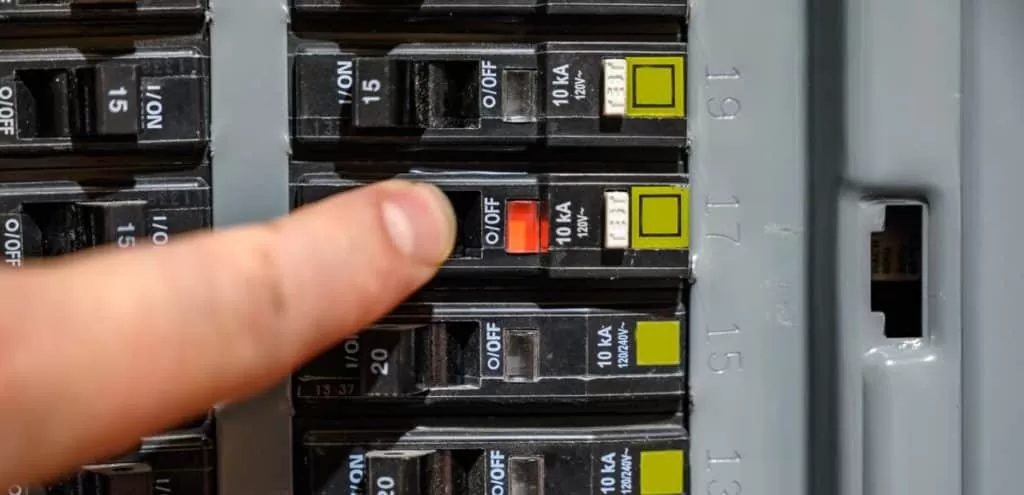

Power Problems: Circuit Breakers and Electrical Issues

After confirming the thermostat, the next step is the electrical system. Every air conditioner connects to the home’s electrical panel through a dedicated circuit breaker, typically rated at 15–60 amps depending on unit capacity – always check the unit’s nameplate. The AC unit requires a stable power supply, and proper electrical wiring is critical for safe operation. When the breaker trips during an electrical overload, it sits visibly between ON and OFF. To reset: push the breaker fully to OFF first, then back to ON.

• Fuses behave differently. The disconnect box near the outdoor unit contains cartridge or blade fuses that protect the control circuits from current overload. A blown fuse shows a discoloured casing or broken internal filament – it must be replaced, not reset.
• The safety switch at the disconnect box is easy to overlook. This pull-out switch isolates the outdoor unit from the power supply. When the outside AC unit is not turning on but the breaker looks fine, checking whether this switch is fully engaged resolves the issue more often than expected.
• If the breaker trips again immediately, stop. Repeated tripping signals an electrical fault in the electrical wiring or unit – professional electrical diagnostics are required rather than repeated resets.

Clogged Air Filters and Airflow Problems

A dirty air filter causing a complete AC shutdown surprises most homeowners. Yet clogged filters are behind a significant share of no-start calls every summer.

The filter traps dust, debris, and allergens to protect the evaporator coil and maintain system airflow. When fully clogged, airflow drops sharply – the evaporator coil begins to freeze, and the safety mechanism shuts the system down.

• Replacement frequency: every 1–3 months; more often with pets or in dusty environments
• Recommended MERV rating: 8–13 for most residential systems – balances filtration with adequate airflow
• Filter types: disposable or washable, depending on system configuration
• Visual check: if the filter blocks visible light, replace it immediately

DIY Troubleshooting Steps for a Non-Starting AC Unit

Before scheduling service for an air conditioner not turning on, run through the same DIY AC diagnostics sequence used on professional HVAC calls.

Safety precautions first: Set the thermostat to OFF before touching any components. Never open or reach into the electrical panel. If there is standing water near the indoor unit, cut power at the breaker first. Do not restart a unit that smells of burning or shows visible scorch marks.

Diagnostic order:

1. Thermostat – check mode (COOL), temperature setting, and battery status
2. Main circuit breaker – look for a tripped breaker at the electrical panel; reset once if needed
3. Disconnect box – confirm the pull-out switch is engaged; inspect fuses for signs of failure
4. Indoor shutoff switch – a light-switch lever near the air handler that can be accidentally turned off
5. Air filter – replace if dirty or clogged
6. Condensate drain pan – check for standing water; a full pan activates the float switch
7. Outdoor unit – look for ice on refrigerant lines; if present, turn the AC off and wait 2–4 hours
8. Reset button – press if one is present on the outdoor unit, then follow the power cycle procedure below

How to Safely Reset Your AC Unit

When the AC is not kicking on after a shutdown, the instinct is to reset immediately. That’s one of the most common mistakes – restarting too quickly stresses the compressor and can trigger additional failures.

Correct power cycle procedure:

1. Set the thermostat to OFF
2. Switch the circuit breaker to OFF – this cuts all power flow to the unit
3. Wait at least 3–5 minutes – refrigerant pressure needs time to equalize. After a thermal shutdown or power outage, extend the wait to 30 minutes
4. Flip the breaker back ON
5. Set the thermostat to COOL, target temperature 5°F below current room temperature
6. Wait up to 10 minutes – most HVAC systems have a built-in time-delay relay (3–5 minutes) protecting the compressor from rapid restarts

Common homeowner mistakes during reset:

• Cycling power multiple times without waiting 30 minutes between attempts
• Resetting the breaker more than once without identifying what caused the trip
• Forgetting to turn the thermostat to OFF before cutting the breaker

If the unit starts but shuts off again within the hour, the reset has masked a deeper issue – pointing toward refrigerant, electrical, or compressor problems.

Checking and Replacing Air Filters

The air filter sits in the return air duct or inside the air handler cabinet and directly affects indoor air quality. Inspecting it takes under two minutes and should be part of routine HVAC maintenance.

• Locate – return air duct grille or inside the air handler cabinet
• Inspect – hold to light; no visible light through the filter means replace immediately
• Match the size – dimensions are printed on the filter frame; wrong-size filters leave gaps that bypass filtration
• Install correctly – the arrow on the frame must point toward the air handler to maintain proper airflow
• Choose by household type – MERV 8–10 for standard homes; MERV 11–13 for pets, allergy sufferers, or higher indoor air quality needs
• Washable filters – rinse and allow to dry fully (minimum 24 hours) before reinstalling; replace when the mesh is visibly damaged. A damp filter restricts airflow and accelerates mould growth on the evaporator coil

Checking Condensate Drain Lines and Float Switches

As the air conditioner runs, the evaporator coil produces condensate that flows through the drain line into the drain pan, then exits the home. When algae, mould, or debris blocks the line, the pan fills – and the float switch shuts the system off to prevent water damage.

In some installations, a condensate pump moves water out mechanically rather than by gravity. Condensate pump failure causes the pan to fill even when the line is clear. If the drain is unobstructed but the pan keeps refilling, the pump is the next thing to inspect.

How to clear a clogged condensate drain:

1. Check the drain pan under the air handler for standing water
2. Apply a wet/dry vacuum to the outdoor end of the drain line to pull the blockage out
3. Pour diluted white vinegar or bleach into the drain access port – this clears algae and mould growth
4. Confirm the float switch resets once water levels drop

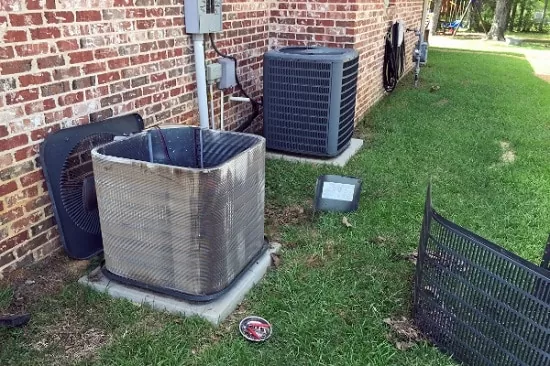

When Your Outside AC Unit Won’t Turn On

When the indoor air handler appears active but no cooling occurs, the problem usually sits in the outdoor condenser unit. The condenser contains the compressor, fan motor, capacitor, and contactor. A failure in any of them stops the system – the compressor circulates refrigerant through the entire AC, and without it, there is no cooling cycle.

Signs to observe at the outdoor unit:

• No sound at all – power may not be reaching the unit; start with the disconnect box
• Humming without the fan spinning – strong indicator of capacitor failure
• Fan spinning but no cooling – possible compressor or refrigerant issue
• Clicking followed by silence – the contactor may not be holding main power
• Burning smell – shut the system off immediately; do not restart

Leaves, grass clippings, and debris around the condenser restrict airflow, cause the compressor to overheat, and trigger high-pressure protection switches. Maintaining 2 feet of clearance on all sides prevents this.

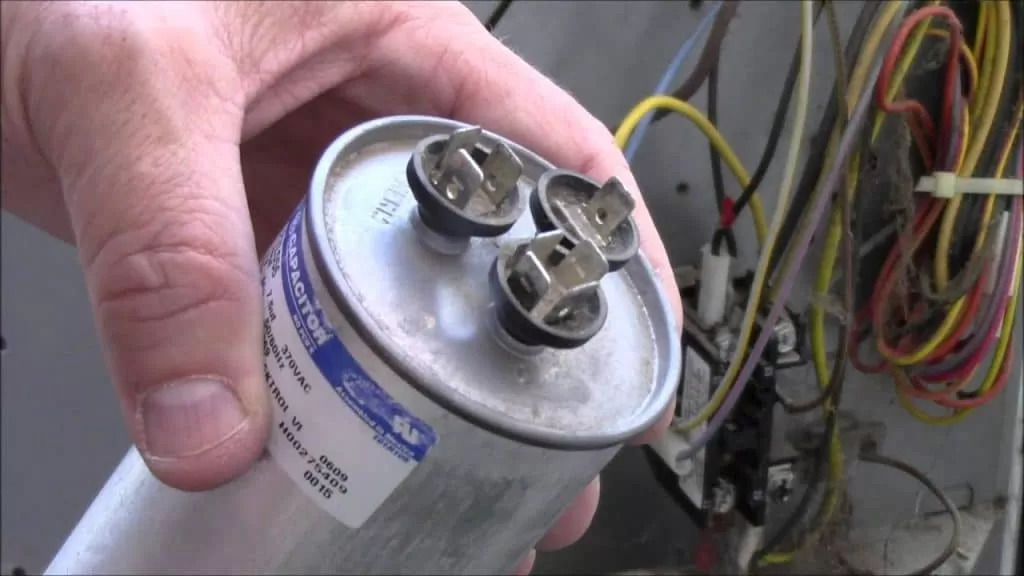

Capacitor and Contactor Failures

Two electrical components inside the outdoor condenser fail more often than any other: the capacitor and the contactor.

The capacitor stores electrical charge and provides starting power to the compressor and fan motor. It is rated at 370–440V with a microfarad range of 5–80μF and lasts 10–20 years. Residential systems use start, run, or dual capacitors – the dual type handles both functions in one unit.

The contactor is a power relay that receives a 24V signal from the thermostat and switches main power to activate the compressor. Contactors last 5-15 years and fail through pitting or burn marks on contact surfaces.

Component	Signs of failure
Capacitor	Humming without starting; visibly swollen casing
Contactor	Pitting or burn marks; chattering sound

Both require professional replacement – capacitors store a dangerous charge even after power is disconnected.

Indoor AC Unit Issues

Outdoor unit problems draw most attention, but the indoor air handler can cause a complete shutdown even when the outdoor condenser is undamaged.

The air handler contains the blower motor, which circulates indoor air across the evaporator coil, and the control board, one of the key electronic components that manages system operation and communication between indoor and outdoor units. When either fails, the entire AC unit stops responding.

Indoor failures that trigger full shutdown:

• Control board failure – disrupts indoor/outdoor communication; often caused by power surges affecting electronic components
• Blower motor failure – bearing wear or overheating causes shutdown when no airflow is detected
• Frozen evaporator coil – triggered by low refrigerant or restricted airflow; activates safety protection
• Indoor run capacitor failure – the blower motor has its own capacitor that can fail independently

Advanced Issues Requiring Professional Help

Some AC problems require tools and certifications that homeowners don’t have access to. Going further than basic checks risks additional damage and can void a still-valid manufacturer warranty.

Call a certified HVAC technician when:

• The circuit breaker trips again immediately after reset
• A burning smell or visible burn marks appear near any component
• The system short-cycles – turns on and off rapidly
• Ice keeps forming on refrigerant lines after thawing
• The compressor hums but won’t start after a proper reset sequence

Professional technicians perform advanced electrical diagnostics using manifold pressure gauges, capacitor testers, and refrigerant recovery equipment – procedures inaccessible without proper certification.

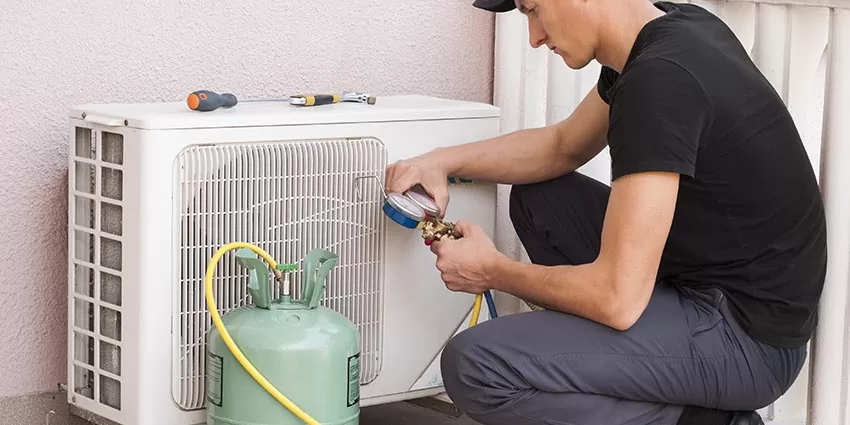

Refrigerant Leaks and Compressor Issues

Refrigerant circulates through the sealed system AC under pressure, transferring heat from indoors to outdoors. Systems installed before 2025 use R-410A; older units may contain R-22. As of January 1, 2025, the EPA banned R-410A in new equipment– new systems use R-454B or R-32.

When refrigerant leaks through damaged components, pressure drops – and the low-pressure protection switches prevent the compressor from running to avoid further damage. Proper leak detection procedures involve pressure testing and visual inspection to confirm the source.

The compressor operates on a dedicated 240V circuit and draws significant current on startup. An aging capacitor, a pitted contactor, or a wiring fault can all prevent it from receiving the power it needs – which is why diagnosis goes beyond a visual check.

Warning signs of a refrigerant leak or compressor problem:

• Warm air at the vents despite the system appearing to run
• Ice forming on indoor refrigerant lines or the evaporator coil
• Hissing or bubbling sounds near the indoor unit
• Compressor hums briefly, then goes silent
• Unusually high electricity bills with no change in usage

Under EPA Section 608 regulations, only certified technicians may legally handle refrigerants. Leak detection and compressor diagnosis require pressure testing with calibrated manifold gauges by a professional.

Preventative Maintenance Tips to Avoid Future Problems

Most AC failures are preventable. A well-maintained system reaches its 15–20 year average lifespan and avoids the most common failure points: capacitor wear, contactor degradation, filter clogging, and condensate drain blockages. Regular upkeep also supports energy efficiency – a system with clean coils and correct refrigerant charge runs leaner and keeps electricity bills lower.

Homeowner maintenance tasks:

Task	Frequency
Air filter replacement	Every 1–3 months
Condensate drain cleaning	Every 3–6 months
Outdoor unit debris clearance	Monthly in summer
Thermostat battery replacement	Annually

Professional maintenance every 6–12 months covers capacitor and contactor testing, refrigerant pressure checks, condenser coil cleaning, and blower motor inspection – components homeowners can’t safely access.

Seasonal AC Maintenance Schedule for Optimal Performance

Spring – Pre-Season Startup

• Schedule professional inspection; replace air filter; test thermostat and replace batteries
• Clear 2 feet of clearance around the outdoor condenser; run a brief test cycle before peak heat

Summer – Peak Season

• Check air filter monthly; inspect condensate drain pan every 4–6 weeks for standing water
• Monitor for unusual sounds, reduced cooling, or short-cycling behaviour

Fall – Post-Season Shutdown

• Replace air filter; flush condensate drain line with a diluted bleach solution
• Note any issues from the summer for the upcoming spring service visit

Winter – Preparation

• Avoid running the AC below 15°C outdoor temperature – most residential systems are not designed for these conditions
• Keep the outdoor unit clear of heavy snow accumulation

This month-by-month plan acts as a professional HVAC calendar, helping homeowners schedule routine maintenance and avoid missed seasonal tasks.

Frequently Asked Questions

What is the first thing to check when the AC stops working?

Start with the thermostat – confirm it is set to COOL with the temperature below the current room temperature. Then check the circuit breaker at the electrical panel. These two steps resolve the majority of no-start situations without tools or technical knowledge.

How do I reset my AC unit?

Turn the thermostat to OFF and switch the circuit breaker to OFF. Wait 30 minutes for internal pressure switches to reset. Flip the breaker ON, set the thermostat to COOL, and allow up to 10 minutes for the compressor’s built-in time-delay relay to complete the startup cycle.

Why is my outside AC unit not turning on?

The most common causes are a failed capacitor, a faulty contactor, a tripped circuit breaker, or a blocked disconnect switch. A humming outdoor unit that won’t run points strongly to capacitor failure – the component that provides starting power to the compressor and fan motor.

What are the most common reasons an AC unit fails to turn on?

Thermostat misconfiguration or dead batteries, tripped breakers, clogged air filters triggering safety shutdowns, failed capacitors, and float switch activation from a blocked condensate drain. Refrigerant leaks and compressor failures are less frequent but always require professional HVAC service.

Why is my AC unit fan not turning on?

A failed capacitor is the most frequent cause – the fan motor depends on it for starting power. A worn fan motor, a blown fuse in the disconnect box, or a failed control board can also stop the fan. Humming from the outdoor unit without fan movement points to the capacitor.

How can I prevent my AC unit from not turning on in the future?

Replace the air filter every 1–3 months, clean the condensate drain each season, keep the outdoor unit clear of debris, and schedule professional HVAC maintenance each spring. Regular service catches failing capacitors and contactors before they cause a breakdown.

How to tell if an AC fuse is blown?

Locate the disconnect box near the outdoor unit and remove the fuse block. Cartridge fuses show a discoloured or cracked housing; blade fuses show a broken or melted element. Always replace with the exact same amperage – a higher-rated fuse removes the electrical protection from the control circuits.

Why is my compressor not kicking on?

The most common causes are a failed capacitor, a faulty contactor, low refrigerant activating low-pressure protection switches, or internal compressor failure. A compressor that hums briefly then goes silent points to the capacitor or contactor. Full diagnosis requires professional pressure testing and electrical inspection.

Here is a video to help you if your air conditioner won’t turn on.
