Why Your AC Breaker Keeps Tripping: A Pro’s Guide to Diagnosis & Fixes
A tripped AC breaker on a 30°C afternoon means the air conditioning system drew more current than the circuit was rated to carry. Smile HVAC technicians diagnose this failure across the GTA every cooling season.
Causes range from a clogged filter to a failing compressor pulling 50+ amps. Some fixes take 15 minutes; others demand a TSSA-certified technician. This guide covers safe homeowner checks first, then the faults requiring professional service.
- A tripping breaker means your AC is drawing too many amps — it’s never random and always needs diagnosis.
- Two DIY fixes cover most cases: replace a clogged air filter and rinse dirty condenser coils.
- A failed capacitor is the most common electrical fault — followed by a hard-starting compressor, refrigerant leak, or shorted motor.
- Reset the breaker only once. Burning smell, smoke, or an instant re-trip means stop and call a TSSA-certified technician.
- Annual maintenance prevents most trips — filter changes, coil cleaning, and a pro capacitor check cost far less than an emergency repair.
Why Circuit Breakers Trip
A circuit breaker trips when current exceeds its rated amperage. The bi-metallic strip inside heats and snaps the contacts open within 30-120 seconds during an overload. A short circuit triggers the breaker in under 10 milliseconds; a ground fault produces a similar fast trip. Repeated trips always indicate a fault that needs diagnosis.
What Is an AC Circuit Breaker and Where to Find It
An AC circuit breaker is a double-pole 240-volt device sized between 15 and 60 amps. It sits in the main electrical panel, labeled “AC,” “A/C,” or “Condenser.” The exact amperage prints on the breaker handle and must match the maximum overcurrent protection on the outdoor unit’s nameplate.
The Relationship Between Your AC and Electrical System
A residential central AC draws 15-60 running amps depending on tonnage. The compressor pulls the highest current, between 7-20 amps while running. At startup, it demands a surge of 5-7 times its running load for roughly 0.1 second. Modern compressors include built-in thermal cutouts for that surge under CSA C22.1, the Canadian Electrical Code.
Several factors raise actual draw:
- Outdoor temperatures above 32°C raise compressor workload
- Dirty condenser coils cut heat rejection by up to 30 percent
- Low refrigerant forces longer compressor run cycles
- Aged capacitors increase startup amperage
Common Causes of AC Breaker Tripping
Most AC breaker trips trace to one of seven faults. Three are safe for homeowners. Four require a licensed technician. The capacitor sits in the middle: a healthy one keeps current below the breaker’s trip point; a failed one is the most common cause of breaker trips on otherwise healthy systems.
Simple Issues You Can Fix Yourself
Two maintenance failures account for most preventable AC breaker trips: clogged air filters and dirty condenser coils. Both raise running amperage until the breaker trips on a hot afternoon.
- Replace the air filter. If you can’t see light through it, swap it out. Fiberglass: every 30 days. Pleated: every 60–90 days. Run the system for 24 hours and see if the breaker holds.
- Reset the breaker — once only. Thermostat to OFF. Flip breaker fully off, then on. Wait 30 minutes before switching back to COOL. If it trips again on the next reset, stop and call a technician.
- Rinse the outdoor condenser coils. Power down at the disconnect. Clear debris within 60 cm, then rinse fins inside-out with a garden hose. No pressure washers — they bend the aluminium fins.
- Thaw a frozen evaporator coil. Ice on the refrigerant lines near the air handler? Switch to fan-only for two hours. If it refreezes after a fresh filter, refrigerant levels need a pro check.

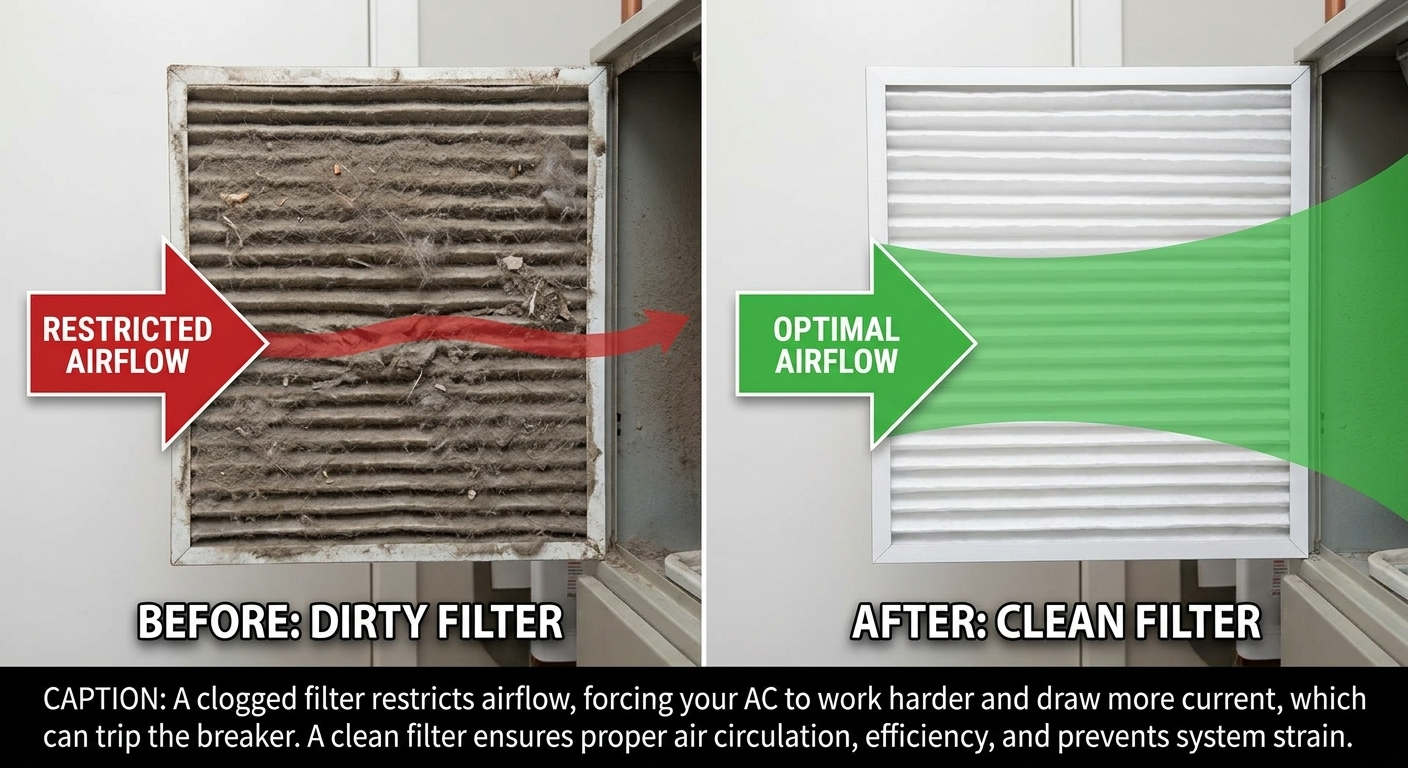

Dirty or Clogged Air Filters
A clogged air filter restricts airflow across the indoor blower, forcing the fan motor to pull more current. A standard fan motor draws 1 to 3 amps when running; a heavily restricted filter pushes that to 5-8 amps. Combined with compressor load, total draw can exceed the breaker’s rating on hot afternoons.
Filter type sets the replacement schedule.
- Fiberglass filters need replacement every 30 days.
- Pleated filters last 60-90 days.
- HEPA filters last 90-120 days but can over-restrict airflow on systems not designed for them.
Restricted airflow also drops the evaporator coil below freezing. A frozen coil forces the compressor to run continuously, tripping the breaker. Replace the filter and run the system for 24 hours; if the breaker holds, the filter was the cause.
Dirty Condenser Coils
The outdoor condenser coils transfer heat from the refrigerant to outside air. Dirt, leaves, and dryer lint act as insulation on the fins. The compressor runs longer and hotter, raising amperage until the breaker trips. Power down at the disconnect, remove debris, then rinse the fins from inside out with a garden hose at moderate pressure. Pressure washers bend the aluminium fins.
More Serious Problems Requiring Professional Attention
The remaining causes involve high-voltage components, refrigerant under pressure, or panel wiring. Short circuit conditions and ground faults fall in this group. We carry the diagnostic clamp meter, refrigerant gauges, and electrical test equipment needed to isolate each fault safely.
| Symptom | Likely cause | Action | Est. cost |
| Trips immediately on every reset | Short circuit or ground fault | Pro only | Varies |
| Burning smell or scorch marks | Shorted motor or arcing wiring | Emergency | $400–$900 |
| Hums 5–10 s, trips after 10–30 min | Failing run capacitor | Pro only | $200–$400 |
| Tingling when touching outdoor cabinet | Grounded compressor (chassis energised) | Emergency | $1,800–$3,500 |
| Weak cooling, trips only on hot days | Refrigerant leak | Pro only | $400–$1,200 |
| Trips only on hottest afternoons | Dirty coils or borderline capacitor | DIY first | $0 / $200–$400 |
| Ice on refrigerant lines | Clogged filter or low refrigerant | DIY → pro | $0 / $400–$1,200 |
Shorted Motor
A short circuit develops when current bypasses the normal load path through damaged insulation. In a shorted fan motor, the short circuit trips the breaker in under 10 milliseconds of restart. Signs include a burning smell, blackened insulation, and a humming sound before the trip. Replacement runs $400-$900 according to Smile HVAC service pricing.
| WARNING: Fire Hazard
A shorted motor poses a serious fire risk. Do not reset the breaker. Disconnect power at the panel and call a TSSA-certified technician immediately. |

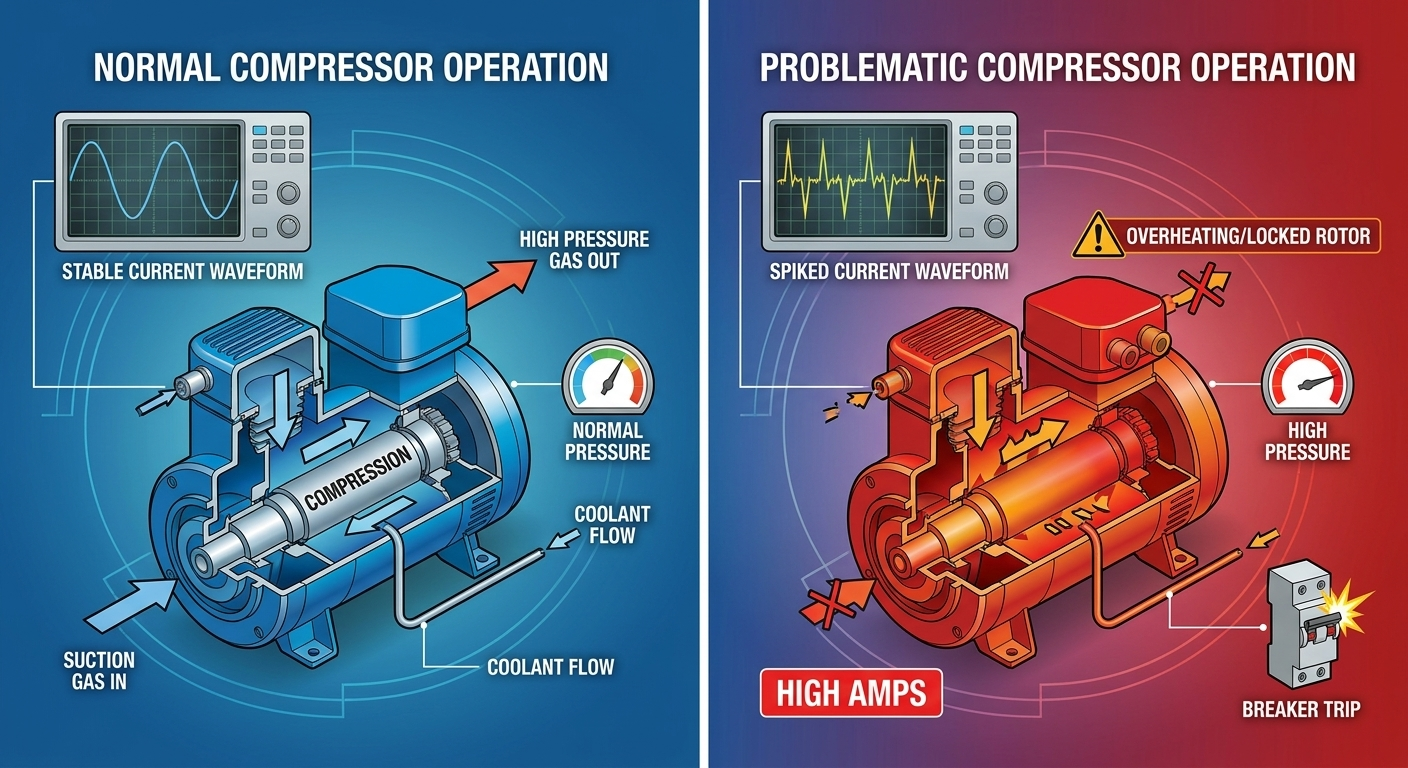

Compressor Problems (Hard Starting and Grounded Compressors)
A hard-starting compressor draws 50-60 amps for several seconds instead of the normal 0.1-second surge. The breaker reads the extended surge as overload and trips. Hard starting usually points to a weak run capacitor.
A failing capacitor often shows visible warning signs: a bulging top on the cylindrical body, oil leakage around the base, or scorch marks on the casing. Run capacitors and start capacitors fail similarly. Replacement runs $200-$400 installed in the GTA.
A grounded compressor creates a ground fault: current flowing to earth through damaged motor windings. The breaker trips on every reset. Ground fault current can energise the metal cabinet of the outdoor unit and create a shock hazard at any conductive surface. Compressor replacement runs $1,800-$3,500. On systems older than 10 years, full AC replacement often makes more sense.
Refrigerant Leaks
Low refrigerant forces the compressor to run without reaching the cooling setpoint. Extended run time raises operating temperature and amperage. The thermal protector trips first, then the breaker. Refrigerant handling is restricted to technicians with Environment Canada ODS certification. Leak repair and recharge runs $400-$1,200.
Frozen Evaporator Coils
A frozen evaporator coil restricts airflow and forces the compressor against ice-blocked refrigerant lines. Causes are a clogged filter or low refrigerant. Both raise compressor amperage until the breaker trips. Run fan-only mode for two hours to thaw the coil. If it refreezes, refrigerant levels need professional verification.
Loose Electrical Connections
Loose connections in the disconnect, contactor, or compressor terminals create high-resistance points that heat under load. Heat damages insulation, oxidises copper, and arcs to ground. The breaker then trips on the resulting short circuit. Annual torquing addresses most of these failures.

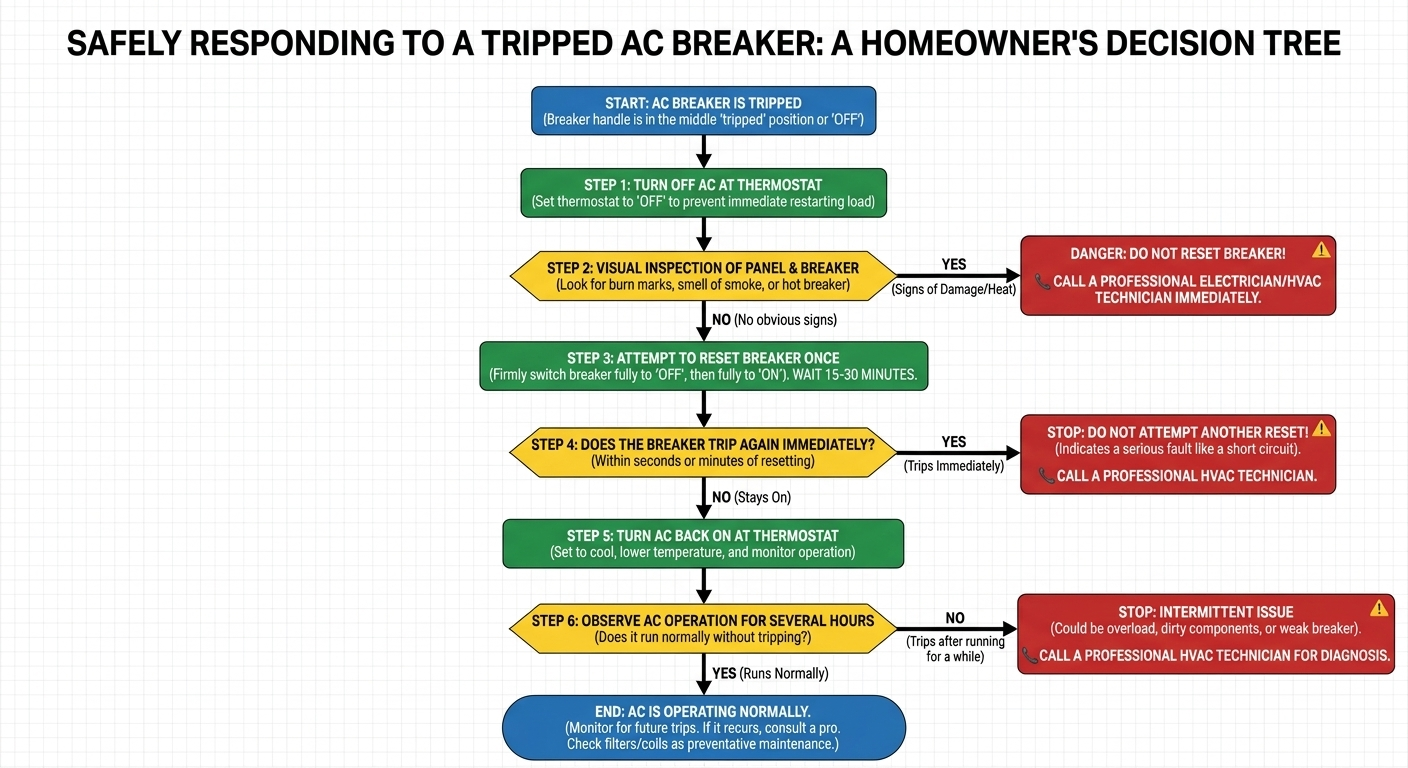

Step-by-Step Troubleshooting Guide When Your AC Trips the Breaker
A safe diagnostic sequence saves equipment and lowers fire risk. Stop and call a professional when a step reveals a serious fault.
Initial Safety Steps (What to Do Immediately)
- Step 1: Turn the thermostat to OFF before resetting any breaker. The compressor uses 5-7 times its running load during startup; an immediate reset pushes that surge through the breaker on top of any underlying fault.
- Step 2: Reset the breaker by flipping it fully to OFF, then firmly back to ON. Reset only once. If it trips again immediately, leave it off and call a technician. Repeated resets can damage breaker contacts and arc inside the panel.
- Step 3: Wait 30 minutes before turning the thermostat back to COOL. The thermal overload uses this window to release pressure and cool the windings. Skipping the wait causes hard starting on the next cycle.
- Step 4: Confirm the system runs at least 10 minutes before deciding the issue is resolved. A clean trip with no recurrence often means a transient overload, not a hardware fault.
DIY Inspection Points
A safe visual inspection covers components homeowners can access without tools. With the system powered down at the disconnect, check:
- Air filter condition: replace if grey or visibly clogged
- Outdoor unit clearance: remove debris within 60 cm of the cabinet
- Refrigerant lines: look for oily residue indicating a leak
- Outdoor cabinet: listen for buzzing, humming, or grinding when running
The fan motor offers the clearest warning signals. A healthy motor runs quietly. Loud buzzing, grinding, or a burnt-electrical smell at the cabinet vents all point to motor stress that will trip the breaker.
Stay at least 1 metre from the open electrical panel. Stay completely away from refrigerant service ports and the contactor inside the disconnect; both carry high voltage even with the breaker off because of stored capacitance.
Do not touch refrigerant service ports, the contactor, capacitor terminals, panel wiring, or any component showing scorching. These all require a TSSA-certified technician.
The Pattern of Trips
Trip timing reveals the fault. An immediate trip on every reset points to a short circuit, ground fault, or grounded compressor. These fire in under 10 milliseconds and are dangerous to reset. A trip after 5-30 minutes of runtime suggests overload: dirty coils, a failing capacitor, low refrigerant, or an aging compressor. A trip only on the hottest afternoons usually means a borderline capacitor.
Safety Warning: The Danger of Repeatedly Resetting Breakers
Resetting a tripping breaker repeatedly is a leading cause of residential electrical fires linked to HVAC equipment. Two conditions cause most trips: short circuits, which carry a fire hazard, and ground faults, which carry a shock hazard. Each reset on a faulted circuit can damage breaker contacts and create arc-flash conditions. After two failed resets, leave the breaker off and call a TSSA-certified technician.
Recognizing Signs of Electrical Danger
| EMERGENCY: Stop and Call
If any sign below is present, do not reset the breaker. Shut off the main breaker, evacuate if smoke is visible, and call the Electrical Safety Authority or the fire department for active fire conditions. |
Stop all troubleshooting and call for emergency service if you notice:
- Burning plastic smell near the panel, disconnect, or outdoor unit
- Visible smoke from any electrical component
- Buzzing, crackling, or sizzling inside the panel, which indicates active arcing from a short circuit
- Scorch marks around breakers
- A tingling sensation when touching the metal cabinet of the outdoor unit, which signals a ground fault energising the chassis and creating shock hazard
- Sparks at the disconnect when the breaker is reset

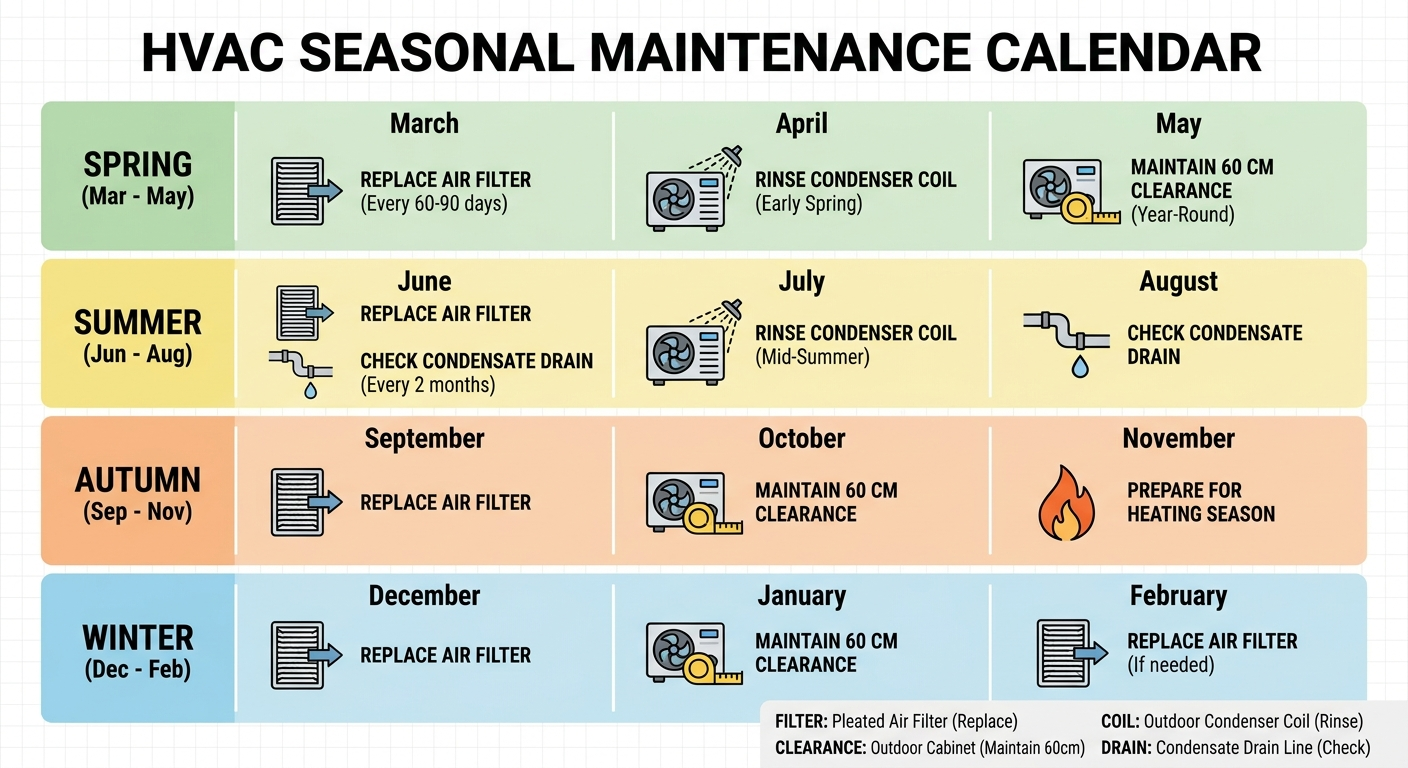

Preventative Maintenance to Avoid Future Trips
Regular maintenance addresses the root causes of nearly all preventable breaker trips. The combined cost of filters, an annual tune-up, and a contractor inspection is a fraction of one emergency compressor replacement.
- Monthly. Inspect the air filter — replace fiberglass filters every 30 days
- Every 2 months. Check the condensate drain line for blockages
- Every 60–90 days. Replace pleated air filter
- Each spring. Rinse outdoor condenser coils with a garden hose; clear 60 cm around the cabinet
- Mid-summer. Rinse condenser coils a second time
- Annually. Pro visit: measure running amps, test capacitor, torque all connections, verify refrigerant charge, inspect contactor for pitting
Regular DIY Maintenance Tasks
Replace pleated air filters every 60-90 days during cooling and heating seasons. Rinse the outdoor condenser coil each spring and again mid-summer. Keep 60 cm clearance around the outdoor cabinet. Check the condensate drain line for blockages every two months in summer.
Professional Maintenance Benefits
A Smile HVAC annual maintenance visit covers what homeowners cannot reach safely. The technician measures running amperage with a clamp meter and tests capacitor microfarad ratings against nameplate values. A capacitor reading more than 10 percent below rated value, or showing bulging or oil leakage, is replaced before failure. Each connection is torqued, refrigerant charge is verified, and the contactor is inspected for pitting.
The Role of Upgrades and Hard Start Kits

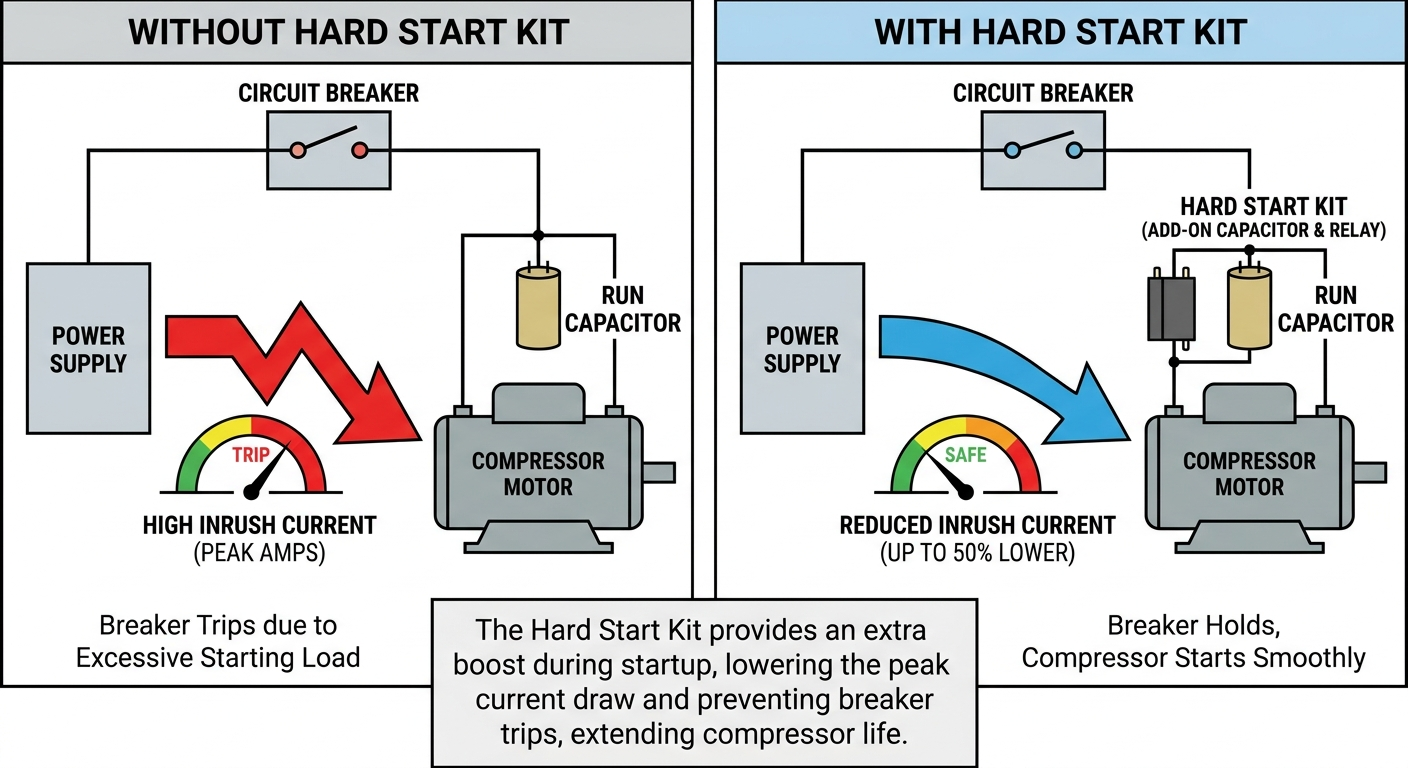

A hard start kit is an add-on capacitor that reduces compressor inrush current by up to 50%. The circuit breaker monitors current draw and trips when peak amps exceed its rating; the hard start kit holds peak amps below that threshold. The kit costs $150-$300 installed and extends compressor life by 2-5 years. Smile HVAC recommends them for Lennox AC systems past 8 years that show borderline trip behaviour. The kit does not solve a grounded compressor or refrigerant leak.
When to Call a Professional
Call a TSSA-certified Smile HVAC technician immediately for any of these:
- A breaker that trips immediately on reset
- A burning smell or visible smoke
- A refrigerant leak
- Compressor failure symptoms
- Wiring damage in the panel or disconnect
Conclusion: Keeping Your Cool When Your AC Breaker Trips
A tripping AC breaker is rarely random. The cause is almost always a maintenance lapse, a worn capacitor, a refrigerant leak, or an aging compressor.
Three actions handle most cases:
- Replace the filter every 60 to 90 days
- Rinse the condenser coil twice each summer
- Book annual professional maintenance
